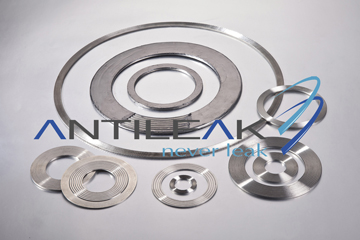

Corrugated Metal Gasket

Product Description

General Properties:

Corrugated Metal Gaskets are gaskets with corrugated cross section. They are versatile sealing element where the available bolt loads are low.

Construction:

Corrugated Metal Gaskets consist of a metal core with a soft material layer on both surfaces upon request, the layers usually made of graphite or PTFE. The corrugations provide resilience and reduce the sealing contact surface area ofthe gasket while the soft material layer ensures outstanding sealing, even atlow loads.

Application:

Corrugated Metal Gaskets are particularly suite to heat exchanger applications as a replacement of metal jacketed gaskets. These gaskets are the perfect gaskets for refineries, chemical and petrochemical plants. They are well suitable for sealing of steel flanges as well as glas lined steel flanges with high pressure and thermal demands.

Available Style:

1041

    Corrugated Metal Gasket


For more information, please download the Technical Data.

  • Technical Data of Corrugated Metal Gasket
    Model:1041 Download
