General Properties:

SWG are semi-metallic gaskets owing to their special construction, SWG can be used athigh temperature like metal gasket.

Construction:

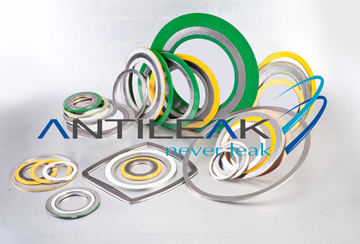

The basic element of spiral wound gaskets consist of a V-shaped metal strip spirally wound in combination with a soft,
filler material. The metal strip provides outstanding resilience, while the flexible filler guarantees excellent sealing.
Spiral wound gaskets can be specified with outer and/or inner rings,depending on the application. Spiral wound gaskets
applied in the main power connection usually have both a metal inner ring andouter ring. Spiral wound gaskets used in
force shunts usually do not have metal inner or outer rings.

Application:

Through precision engineering, the spiral wound gasket, available inunlimited configurations of high quality metals and
materials, is tailored individually to meet the demands of each application. With its unique ability to adapt with flexibility
and recovery to the effects of pressure and temperature fluctuations, bolt stress relaxation and creep. Spiral-wound
gaskets are used in refineries, chemical and petrochemical plants. They arewell suited for sealing of flanges with high
pressure and thermal demands. Sealability is outstanding and wide application range is possible forvarious of piping
and equipment.

Available Style:



1001 R


1001 IR


1001 CR


1001 CRIR


1001 FHE


1001 SSH

    Spiral  Wound Gasket basic type


    Spiral  Wound Gasket with inner ring


    Spiral  Wound Gasket with outer ring


    Spiral  Wound Gasket with both inner and outer rings


    Spiral  Wound Gasket for heat exchanger


    Spiral  Wound Gasket in special shape


For more information, please download the Technical Data.
